3mm X 5mm Carbon Fiber Tube 60″ Length

$32.98

Volume Discount

5-9 10-24 25+
7% 15% Call for Details
*Discount applied at checkout*

Add-On Services

Sanding

Custom Cut Length

Number of Cuts

Quantity

Additional Custom Cut Length

Additional Number of Cuts

Quantity

Additional Custom Cut Length

Additional Number of Cuts

Quantity

Additional Notes / Comments

Description

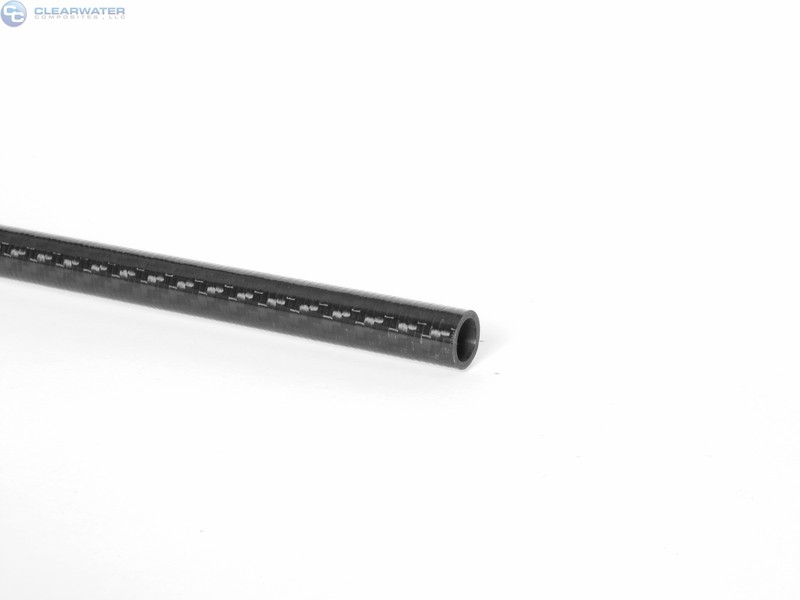

This 3mm x 5mm carbon fiber tubing is fabricated with multiple layers of high strength unidirectional carbon fiber prepreg and has a 3K 2×2 twill fabric on the exterior.   This 3″ carbon fiber tube is roll-wrapped and fabricated in-house at our US facility.

Designed For: Bending applications

Fiber Orientation: Mostly 0° plies (axial) with some 90° plies (hoop)

P/N: 0.118-0.198-TW

Additional information

Weight 0.070 lbs
Dimensions 60 × 0.118 × 0.198 in
Type

Std-Mod

Nominal ID (in)

0.118

Nominal OD (in)

0.198

Wall Thickness (in)

0.040

Length (in)

60

Exterior Material

Twill

Finish

Cello-Wrap (Glossy/Textured)

Nominal ID Range

0.000" – 0.499"

Nominal OD Range

0.500" – 0.999"

Wall Thickness Range

0.000"-0.499"
